Industrial 3D Printing / POST Postprocessing
Dye Mansion Powershot C Blasting Cabinet
3 views
ManufacturerDye Mansion
ModelPowershot C
Year2021
TechnologyPOST Postprocessing
PriceOn Request
Description

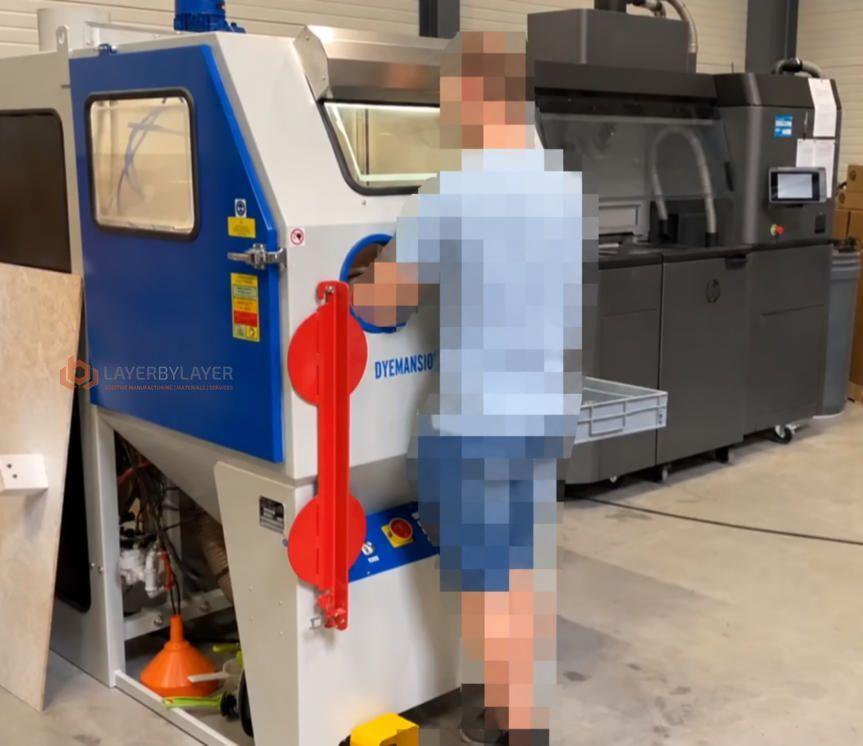

Dye Mansion Powershot C Blasting Cabinet, refurbished model from 04/2021, in very good condition with less than 100 operating hours. Proper maintenance according to manufacturer specifications, last maintenance at decommissioning 12/2025. Includes glass bead blasting media.
Technical Specifications
Technical data & more machines: DyeMansion Powershot C →ManufacturerDye Mansion
ModelPowershot C
Year2021
TechnologyPOST Postprocessing
ConditionUsed
Stock Number857-2026-mjf
General
Weight
480 kg
Dimensions
1,700 × 1,310 × 2,030 mm; recommended space 2,500 × 2,915 × 2,300 mm
Working area
Rotating basket, usable volume 26 l
Compressed Air
2.0 m³/min at 6 bar; input pressure 6–8 bar
Noise level
< 80 dB(A)
Capacity
up to approx. ¾ build job EOS P396, 1 build job HP Jet Fusion 4200/5200 or approx. 1.5 build jobs Stratasys H350
Materials
Polymer parts from powder bed processes (SLS, MJF, SAF), mainly polyamides
Media
Glass blasting media
Process / washing principle

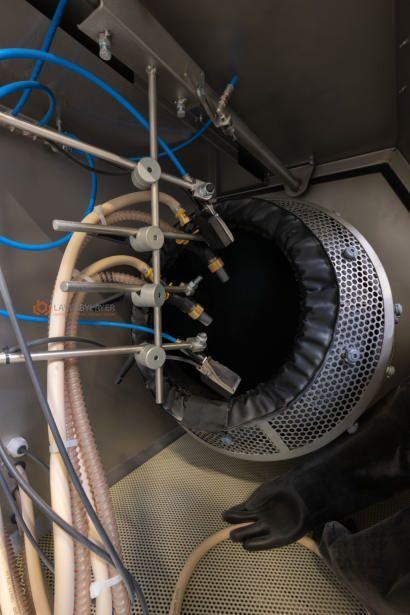

PolyShot Cleaning (PSC): two blasting nozzles perpendicular to the rotating basket, cyclone continuously cleans the media
Software
Touchscreen with pre-installed and custom programs, process monitoring
Power Supply
400 V, 50 Hz, 16 A or 208 V, 60 Hz, 20 A
Cycle Time
1–40 min, typically 3–10 min
Zubehör & Ausstattung
- Glaskugel-Strahlmittel
